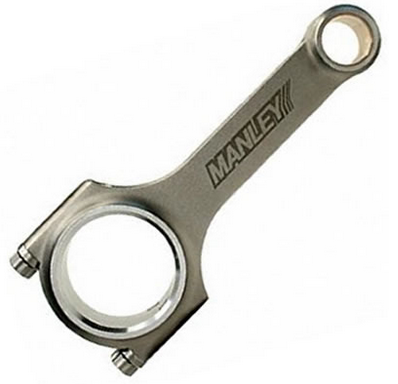

Application: Mazda Mazdaspeed 3 MZR 2.3L DISI Turbo
Center to Center: 5.927"
Big End Bore: 2.167"
Big End Width: .859"
Pin Diameter: .886" (22.5mm)
Pin Bore: .8868"
Gram Weight: 599
- Manufactured from 4340 forgings
- Heat treated, stress relieved, shot peened and 100% individually magnafluxed
- Weight matched sets +1.5 grams
- Cap fasteners are 3/8″ ARP 2000 for the “H″ Beam and 3/8″ ARP Custom Age 625+ for the H-Plus, except part number 14017 which is supplied with 7/16″ ARP 8740 for the “H″-Beam and 7/16″ ARP 2000 for the H-Plus
- Flywheel horsepower range for these rods in a 4 cylinder application is 600+ for the “H″-Beam and 800+ for the H-Plus and for a 6 cylinder application the range is 800+ for the “H″-Beam and 1000+ for the H-Plus
